Navarre Creek Gold Exploration
Inaugural drilling program completed in 2023 identifies continuous zone of anomalous, low-grade gold mineralization.
This is a grassroots exploration project that has shown considerable promise but will require significantly more work before we can assess whether it could be a commercially viable resource.

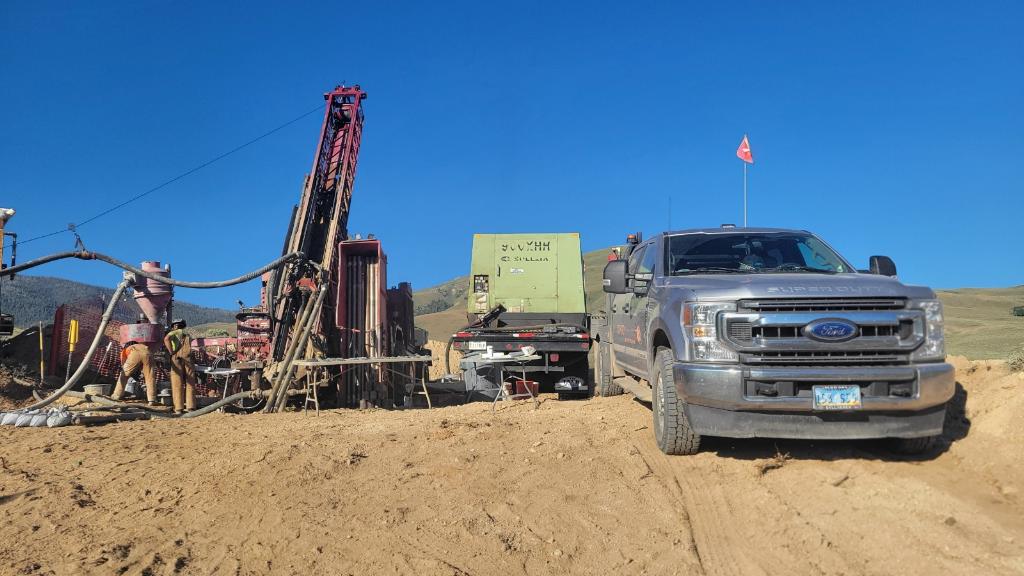

Drilling Program Highlights
- Completed 2023

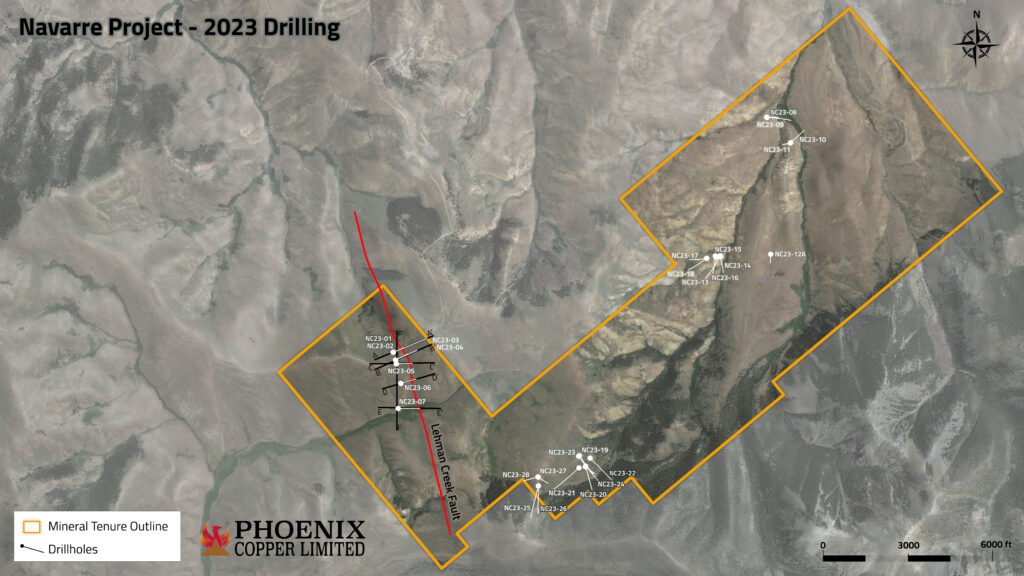

- 28 reverse-circulation drill holes into four target areas within 4,000 acres (16.09 sq kms) claim block.
- Two of four target areas identify mineralization of significance.
- All seven drill holes into the Lehman Creek target identify a continuous zone of anomalous, low-grade gold mineralization ranging from 4.5 metres to 22.9 metres thick.
- 20 additional unpatented mining claims totaling 400 acres staked on the southwest end of the contiguous Navarre Creek claim block.
- View our drilling results report

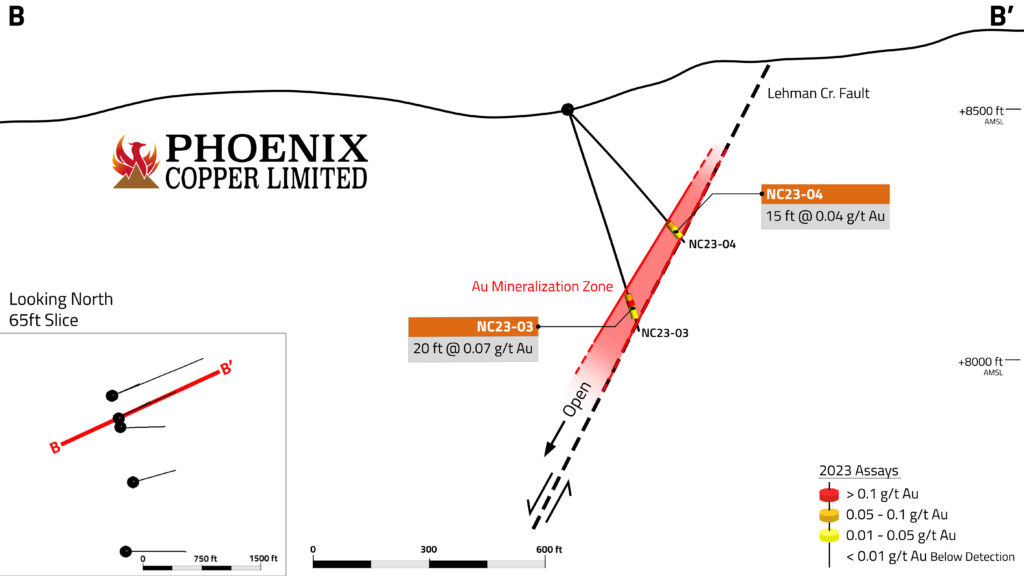

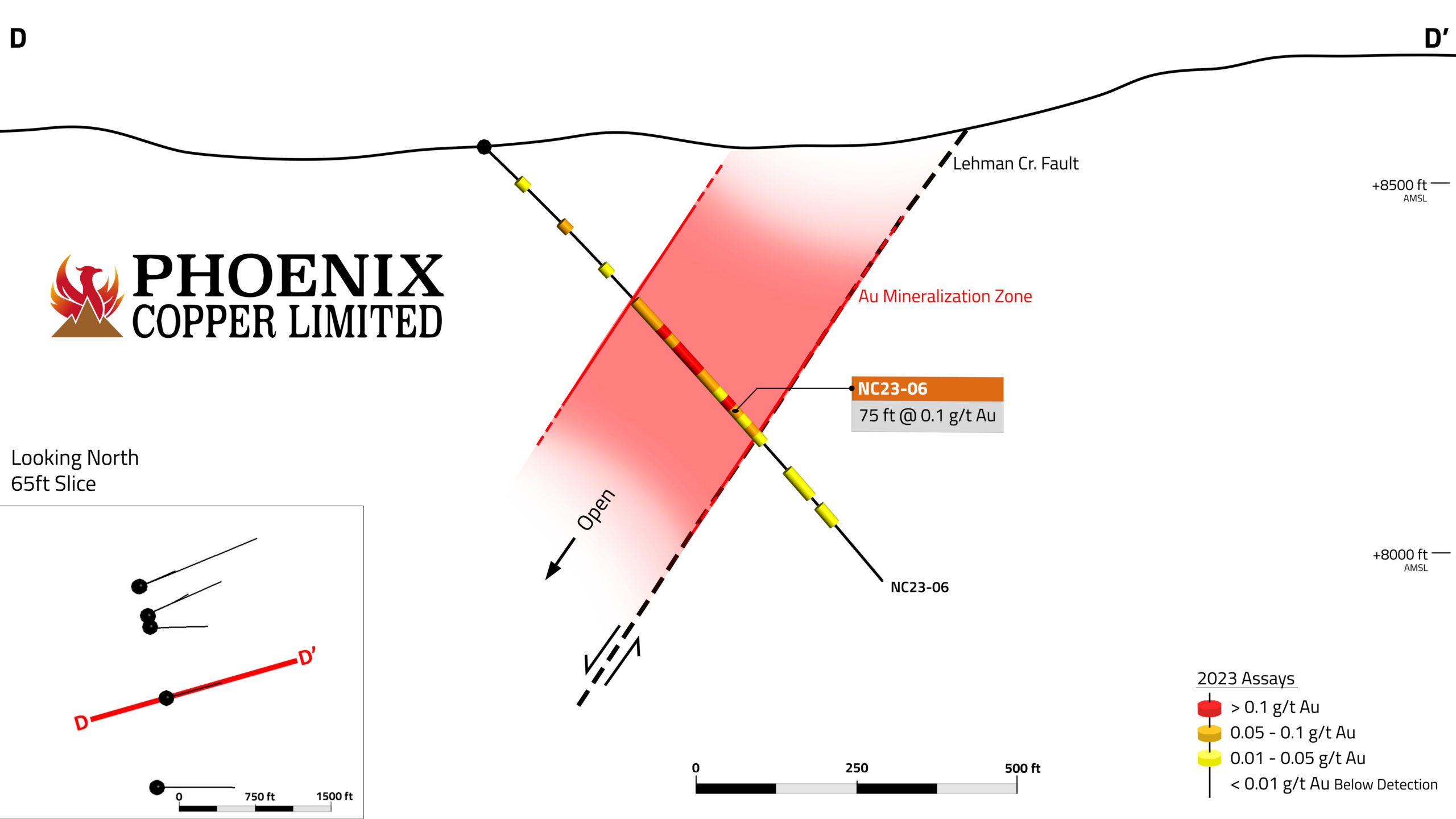

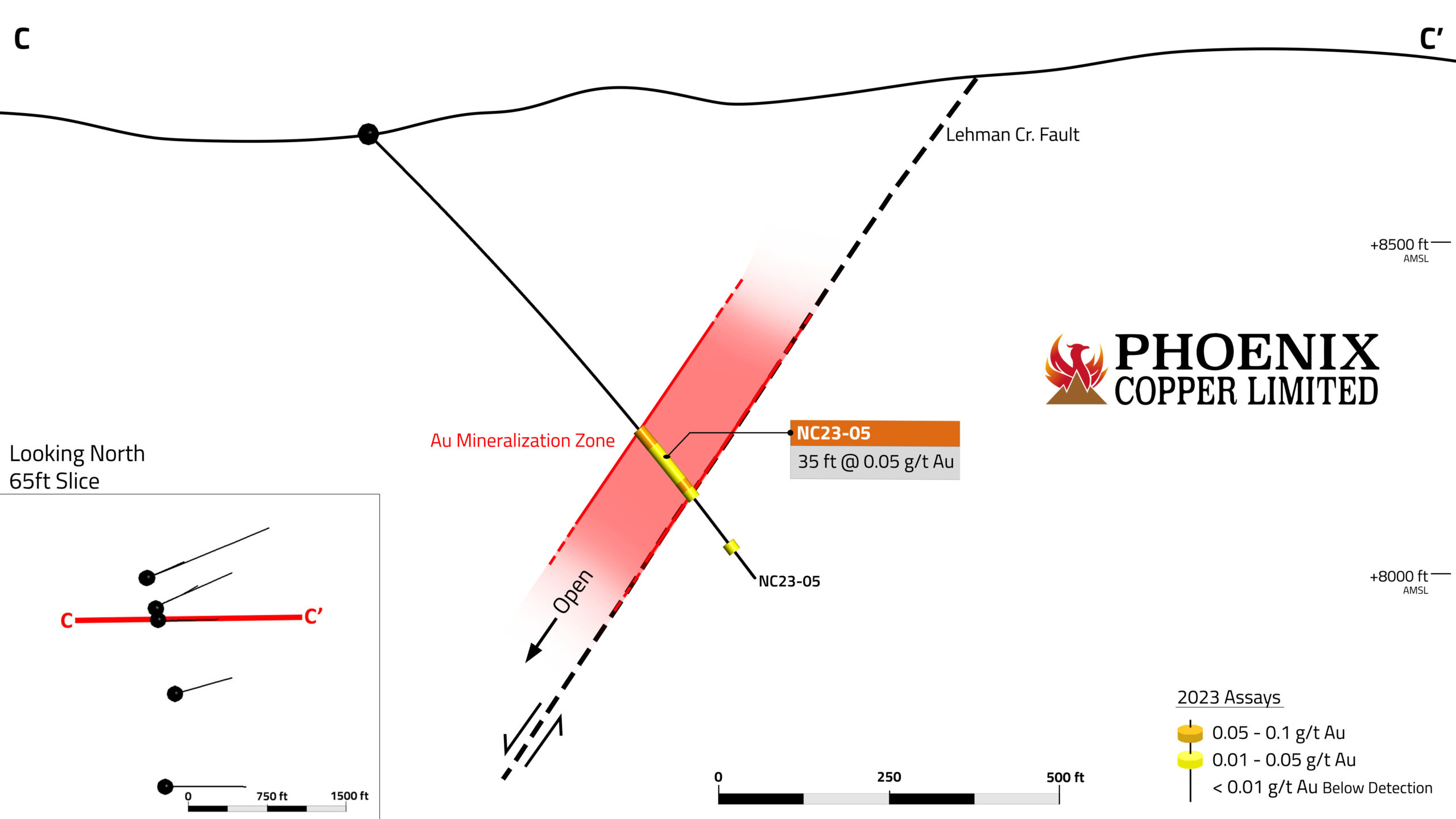

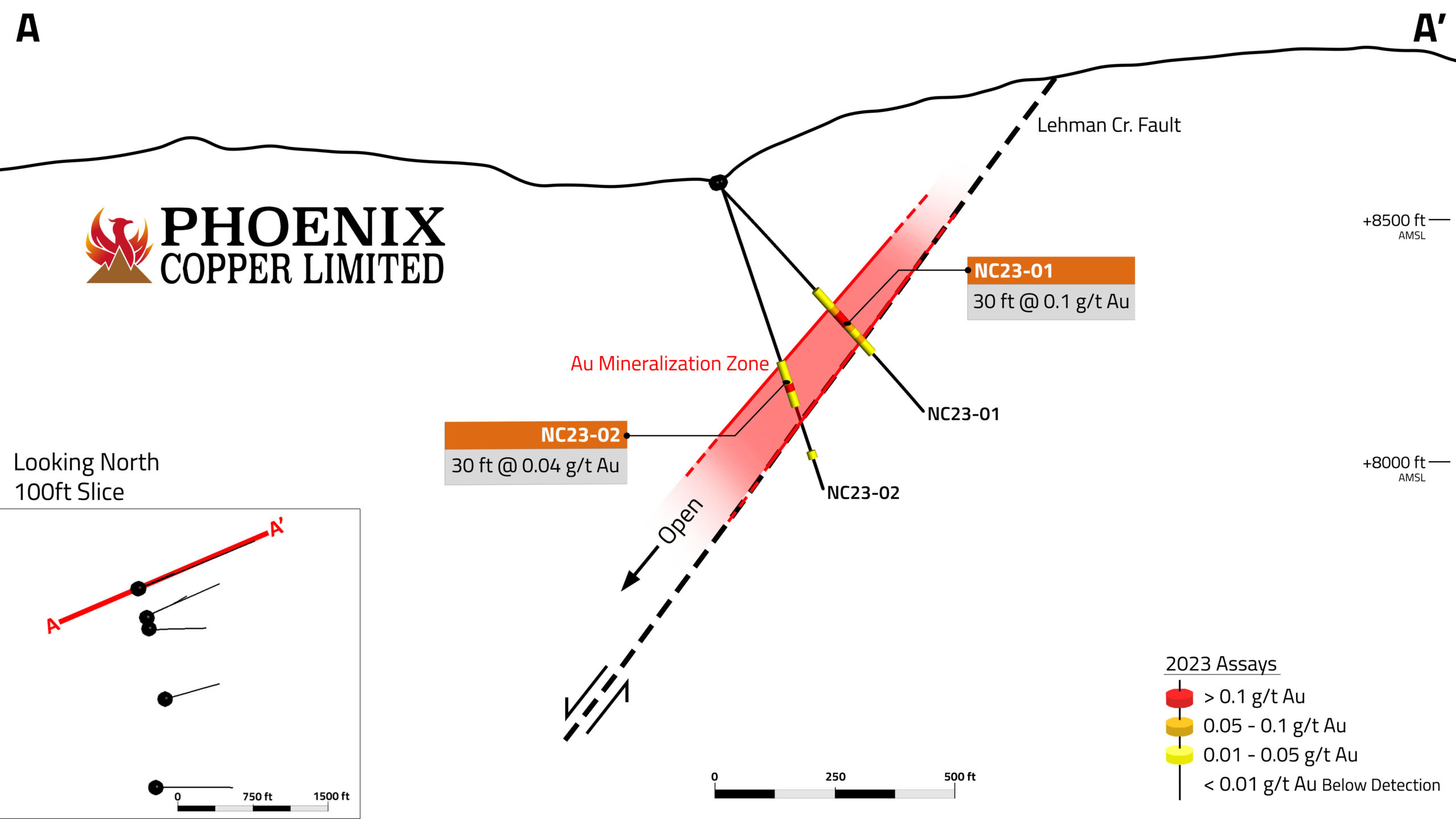

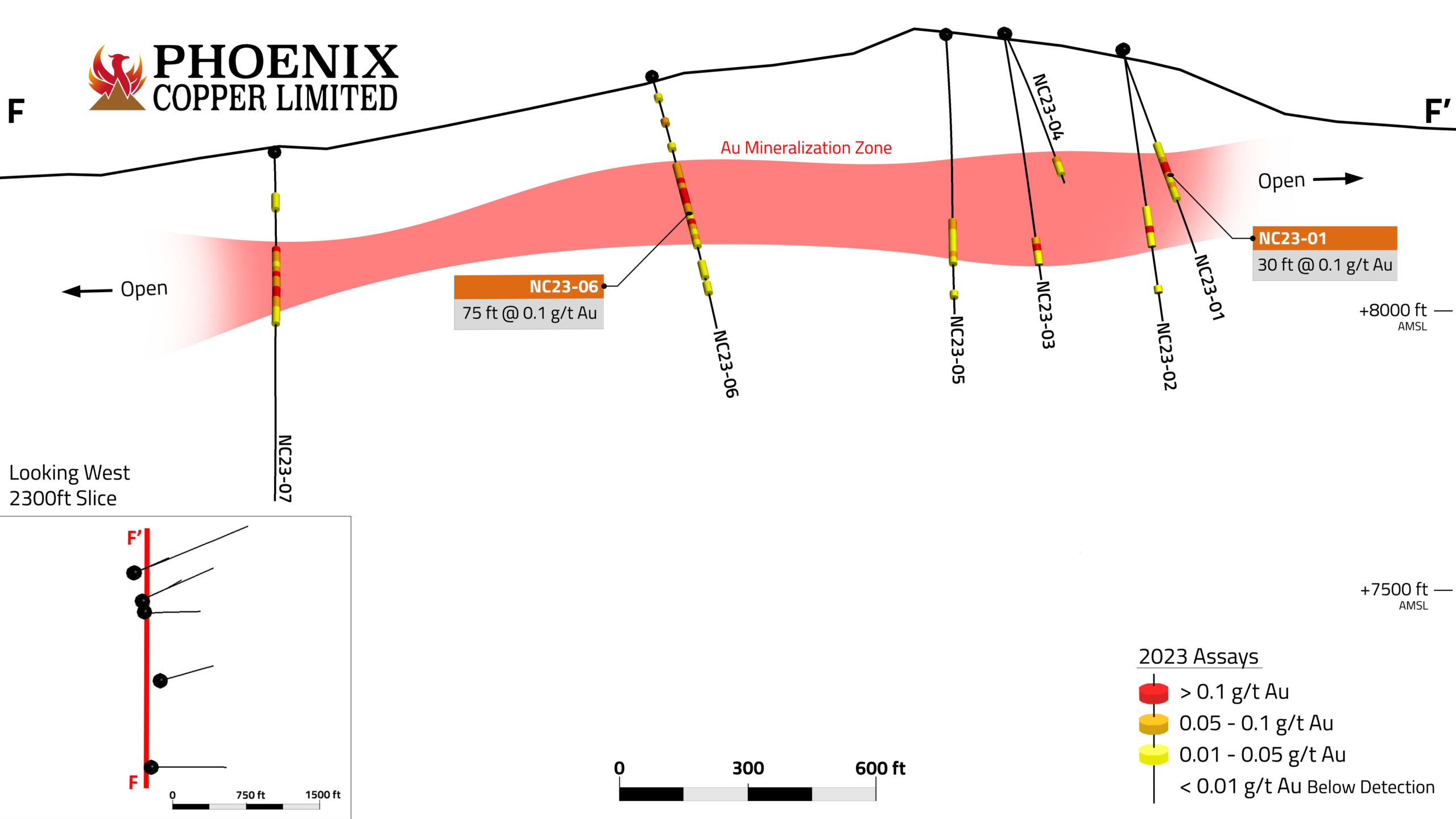

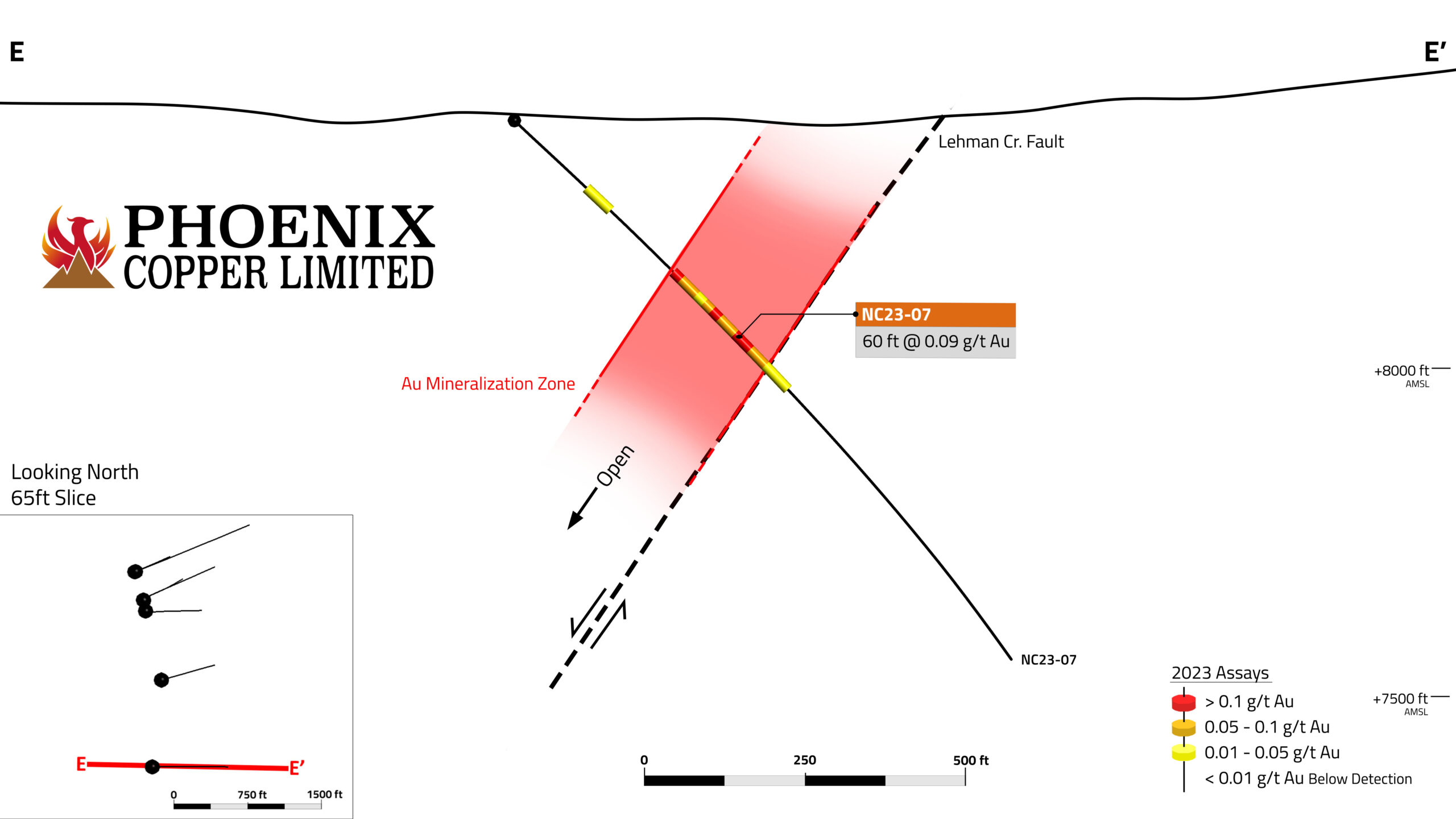

Cross Sections
